MOISTURE METER FOR HAY, GRASS, STRAW IN ROW OR SWATH

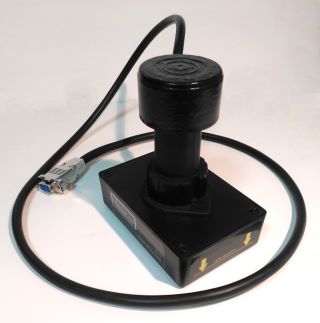

SH-5 SENSOR for MI-7 READER
Moisture meter with absolute humidity sensor for grass swath, hay, fodder, silage, forage, feed, before making the bales.
Programmable also for paper, wood, cheese, surface measurements and loose material.

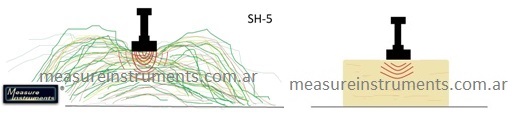

Scheme of the area of influence in the moisture measurement of the sensor in swath or row of grass, paper, wood, cheeses and surfaces.
|
SH-5 SENSOR - Direct readout. - It includes a system of compaction, for better reading on grass, loose materials and measurements on surfaces. - Measurement on surfaces without deterioration of the material. - Sensing volume: between 7 and 10 cm. deep, below the sensor. - Moisture range: 0 to 100%. - Principle of operation by signals, which go through the materials to be measured. - The sensitive electrodes are not in contact with the material. - Handle in ABS with high resistance and durability. - Robust design, for work in all types of environments. - Programmable also for cheeses, woods, paper, dehidrated vegetables in bulk. MI-7 READER measuring head - A single reader and different interchangeable sensors for moisture determinations in all types of products. - Single lateral input connector for all interchangeable sensors. - Automatic detection of the type of sensor connected. - Direct reading of the moisture or absolute humidity percentage. - Range of moisture reading in display: 0 to 100%, resolution 0.1%. - Temperature range 0 to 100 & deg; C, resolution 0.1 & deg; C. - Automatic Correction of the measurement, by temperature. - 2-line alphanumeric display by 16 characters. - Store the 25 latest measurements in memory. - Power battery of 9 volts. - Measurements and calibrations are not lost when the battery is removed. - Function for standard calibration adjust by means of equalization of the calibration chart. - Dimensions and weight: length overall 19 cm., width 9,5 cm., prof 3,5 cm., weight 300g. - Factory calibrations for:
- Bales, rolls and silopack. (SH-6 Sensor) - Swath or row of grass or hay. (SH-5 Sensor) - Clay, silty and sandy soils. (SH-3 Sensor) Basics functions - Moisture measurement - Temperature measurement - Last measurement reading - Standard or factory calibrations adjust |
|
- For moisture measurement in: cotton, paper, woods, cheese, surface moisture determination. - Storage in memory 70 patterns samples. - Programmation of new products. - Clear calibrations - Modification of calibrations Connection to computer - Output connector for comunication to PC. - Software for storage measurements and calibrations. - 9V connector and external power supply. |
![]() |
Moisture meter in hay or grass swath
SH-5 Sensor for MI-7 Reader
Moisture meter with absolute humidity sensor for grass swath, hay, fodder, silage, forage, feed, before making the bales. Programmable also for paper, wood, cheese, surface measurements and loose material.
Scheme of the area of influence in the moisture measurement of the sensor in swath or row of grass, paper, wood, cheeses and surfaces.
MI-7/PC Optional measuring head
