Grain & powder moisture meter

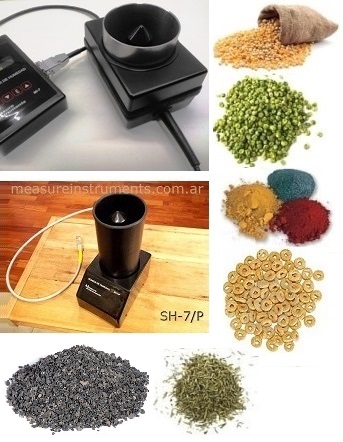

SH-7, /F & /P Sensors for MI-7 reader
Moisture measurement with sensor for grains, cereals, seeds and programmable for powders, flours, granulated, coffee, tee, dehydrated vegetables or herbs, sugar, chemical products, minerals.

SH-7 Sensor

Include weight system.

The amount of necessary sample is by weight.

Dimensions: diameter 89 mm, height 90 mm.

For moisture in grains, cereals, granulates, flours and powders.

SH-7/F Sensor

Fixed sensitive recipient for working in plants and extreme ambients.

The amount of necessary sample is by volume.

dimensions: diameter 89 mm, height 90 mm.

For moisture in grains, cereals, granulates, flours, chemical products and powders.

SH-7/P Sensor

Fixed sensitive recipient for working in plants and extreme ambients.

Height of the recipient extended for materials with low specific weight.

The amount of necessary sample is by volume.

dimensions: diameter 89 mm, height 180 mm.

For moisture in dehydrated vegetables or herbs, spices, chemical products.

MI-7 Measuring head

A single reader and different interchangeable sensors for moisture determinations in all types of products.

Single lateral input connector for all interchangeable sensors.

Automatic detection of the type of sensor connected.

Direct reading of the moisture or absolute humidity percentage.

Range of moisture reading in display: 0 to 100%, resolution 0.1%.

Temperature range 0 to 100 & deg; C, resolution 0.1 & deg; C.

Automatic Correction of the measurement, by temperature.

2-line alphanumeric display by 16 characters.

Store the 25 latest measurements in memory.

Power battery of 9 volts.

Measurements and calibrations are not lost when the battery is removed.

Function for standard calibration adjust by means of equalization of the calibration chart.

Dimensions and weight: length overall 19 cm., width 9,5 cm., prof 3,5 cm., weight 300g.

Factory calibrations for:

• Corn, soybeans, sunflower, wheat, candeal wheat, paddy rice, sorghum, oats, barley and rye. (SH-7 Sensor)
• Bales, rolls and silopack. (SH-6 Sensor)
• Swath or row of grass or hay. (SH-5 Sensor)
• Clay, silty and sandy soils. (SH-3 Sensor)

Basics functions

Moisture measurement

Temperature measurement

Last measurement reading

Standard or factory calibrations adjust

MI-7/PC Optional measuring head

Programming function of new products

Programmation system of calibrations for new products.

For moisture measurement in: cotton, paper, woods, cheese, surface moisture determination.

Storage in memory 70 patterns samples.

Programmation of new products.

Clear calibrations

Modification of calibrations

Connection to computer

Output connector for comunication to PC.

Software for storage measurements and calibrations.

9V connector and external power supply.
